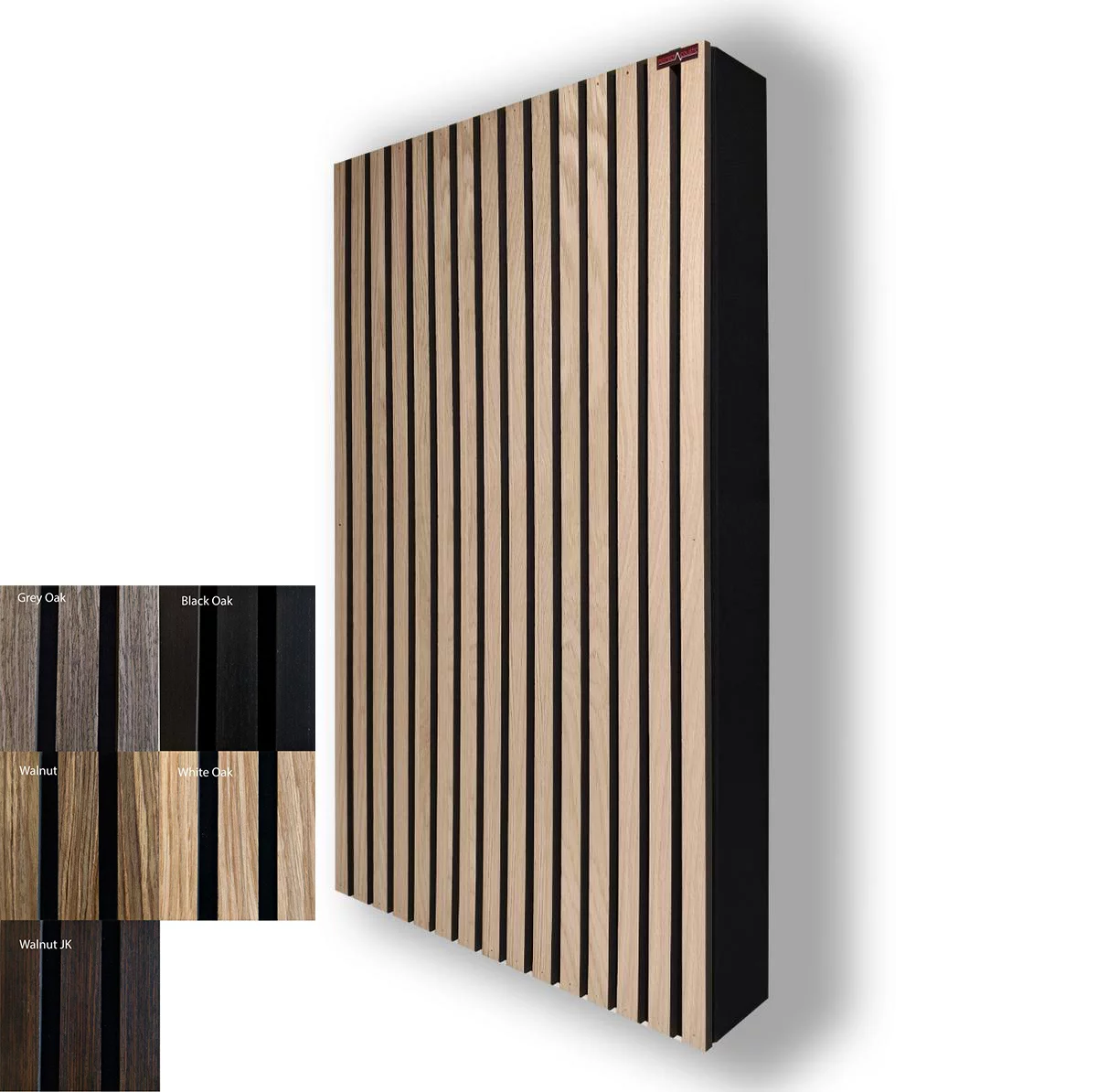

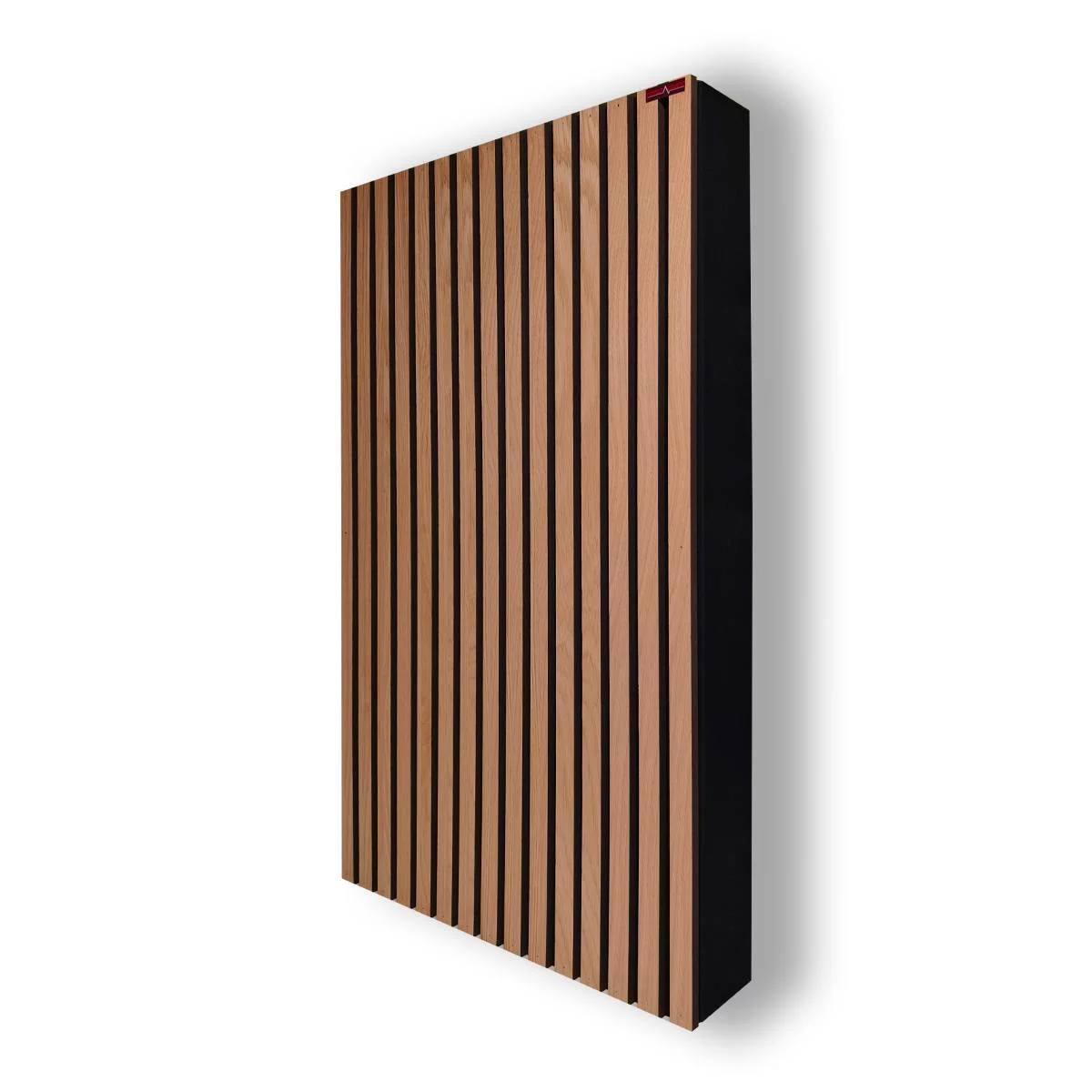

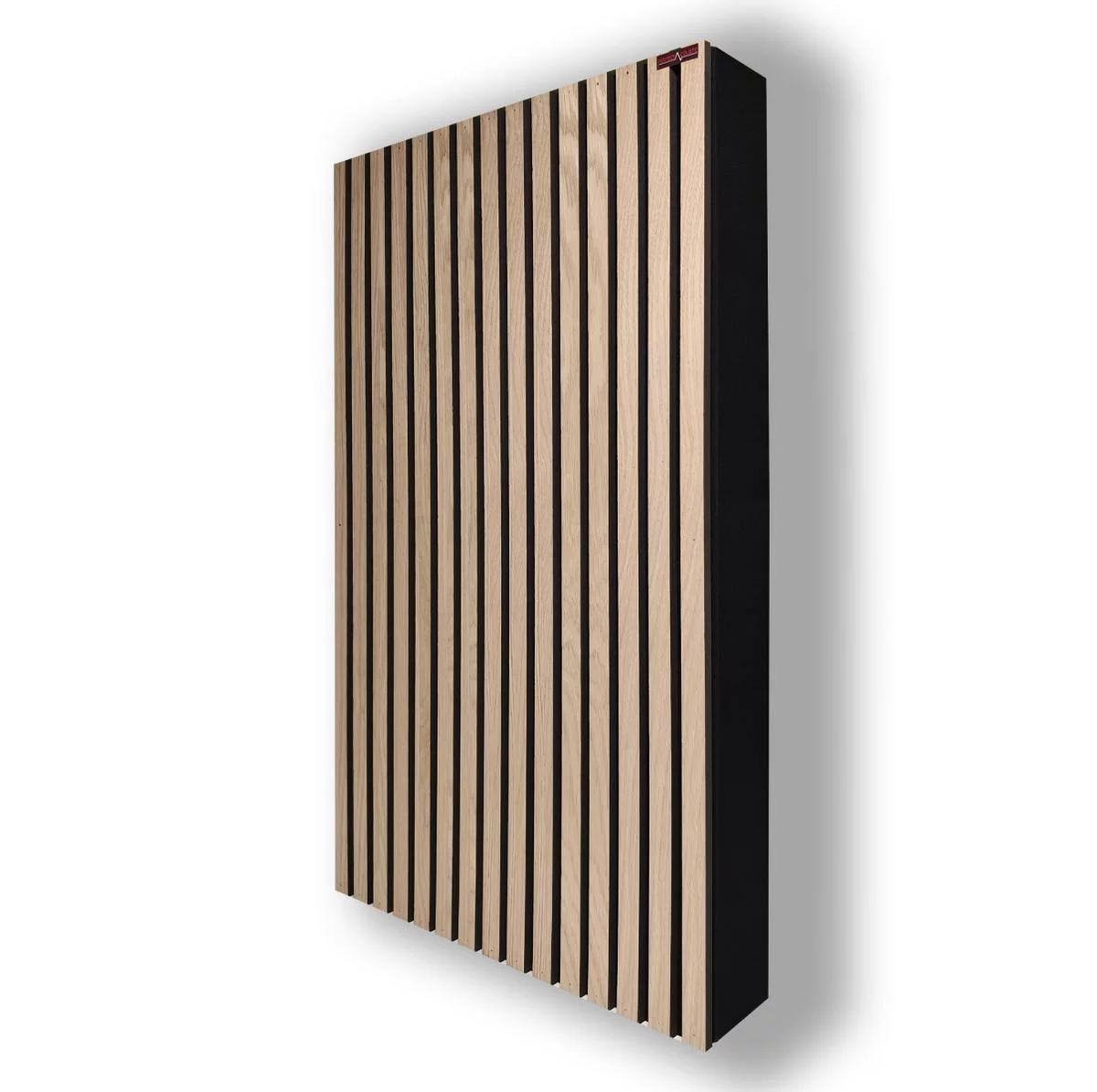

Acoustic Panel with Wooden Slatted Front 100×58,5×8–13cm

Details of the Acoustic Panel with Wooden Slatted Front

• Available with the latest Elitexa extra-dense 200kg/m3 acoustic foam

• With this option, sound absorption below 400Hz nearly doubles

• As a result, the product weight almost doubles as well

• The denser the material, the more low frequencies it can absorb

• Size options: 100×58,5x8cm, 100×58,5x13cm

• Absorbing material inside: acoustic rock wool 90kg/m2 or acoustic foam 80kg/m2

• Structure: 1.8cm thick hardwood frame filled with sound-absorbing material and finished with a wooden slatted wall panel

• Front panel colors can be selected separately from the fabric color behind

• The slats: 13mm thick wood, mounted on a 9mm felt base, laminated with a thin colored wood layer

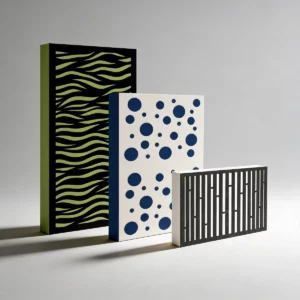

Choose from our other Acoustic wall panel range

Advantages of Panels with Front Covers

They feature high levels of sound absorption and diffusion. They enhance the sense of space, reduce echo and reverberation time. Music and film audio become more detailed and dynamic. Thanks to the wooden slats, they efficiently diffuse sounds. The heavy wood and the dense absorbing material are extremely effective at absorbing low-frequency sounds. These panels absorb bass frequencies better than standard broadband panels or diffuser-front panels. They pair perfectly with full wall-mounted wooden slat panels, blending harmoniously with the wall.

Panels with Foldable Legs Available:

Stack the Panels

Two or even three panels can be joined to form an acoustic wall. The rail system allows for a secure connection without the panels falling apart. Simply align and slide the rails together. Rails are available in various colors. We recommend using legs on the bottom panel to prevent the structure from tipping. Ideal for locations where wall-mounting is not possible, such as:

Mounting Acoustic Panels on the Wall

Each panel comes with picture hooks and wood screws, which can be easily attached to the back side of the panel afterward.

If you prefer ceiling installation, hooks are available separately. In this case, drill holes 5–6 cm inward from each corner, and we provide hooks with the panels.

Custom Sizes Available

In custom orders, only smaller sizes can be produced compared to the standard. Tolerance in dimensions: ±5mm.

Standard panels are also manufactured with a ±5mm size tolerance.

Manufacturing and Return Policy

Products are not kept in stock, but can be manufactured in a few days.

Every front-covered panel is considered custom-made, due to the wide range of available configurations. Therefore, returns are not accepted once manufacturing is complete.
