Suspended ceiling soundproofing – what it really involves and when it becomes genuinely effective

Suspended ceiling soundproofing only delivers real results when a flexibly decoupled, mass-increasing ceiling build-up is created beneath the existing structure. The aim is not simply to cover the ceiling, but to interrupt vibration paths and reduce airborne noise such as speech, television sound, music and part of the impact noise coming from above.

You can explore additional products in the ceiling acoustic panel category, where complementary ceiling-related solutions are available.

The real principle behind decoupled ceiling sound insulation

The essence of decoupled ceiling sound insulation is not the surface cladding itself, but the mechanical separation from the structural slab. In an effective system, a controlled air cavity is created beneath the existing ceiling. This cavity is filled with sound-insulating material such as mineral wool or extra-dense Elitexa soundproofing foam. Below this, one or two layers of plasterboard or another high-mass sound-insulating board are installed.

This layered structure reduces the transmission of speech, television noise, music and certain types of impact noise generated by footsteps above.

In residential flats and office environments, noticeable improvement is only achieved when the ceiling is installed using resilient hangers. Rigid profiles or direct fixings create sound bridges that allow vibrations to pass through the structure, significantly reducing sound insulation performance.

Purpose and realistic expectations of suspended ceiling soundproofing

The primary goal of suspended ceiling soundproofing is to reduce noise coming from neighbouring spaces, such as speech, TV, music or part of the impact noise, while keeping ceiling height loss and costs within reasonable limits.

In homes and offices, results are most convincing when a fully decoupled suspended ceiling is installed. Rigid systems allow sound to travel easily through the structure, making them far less effective for genuine noise reduction.

Typical construction and expected results

• Overall build-up and drop: 8–15 cm using resilient hangers and two plasterboard layers
• Cavity infill: 5–10 cm of extra-dense Elitexa soundproofing foam
• Airborne sound insulation improvement: typically +12–20 dB, in favourable cases exceeding 30 dB
• Installation time: approximately 1–2 days for a 15–25 m² room, with no drying time required

How suspended ceiling soundproofing works

This system operates on the mass-spring-mass principle, interrupting vibration transmission between the structural slab and the new ceiling.

The system consists of three main elements:

• First mass: the existing ceiling or concrete slab
• Spring: the air cavity combined with resilient suspension, such as vibration-damping hangers
• Second mass: the ceiling lining, typically multiple layers of plasterboard or other high-mass sound-insulating boards

The key to performance is ensuring that no rigid connection exists between the slab and the suspended ceiling. If the structure is fixed using rigid screws, direct hangers or pressed tightly against walls, vibrations pass through freely and sound insulation performance drops sharply.

Resilient suspension absorbs and disrupts vibration energy, reducing the amount of noise transmitted into the room below.

What are the advantages and disadvantages of suspended ceiling soundproofing?

Advantages

With a decoupled system, not only sound absorption but true sound insulation can be achieved.

• Genuine sound insulation is possible when a decoupled system is installed, not just sound absorption.
• Predictable, proven build-up: mineral wool or Elitexa soundproofing foam combined with one or two layers of plasterboard as a well-established industry standard.
• Services can be concealed: cables, spotlights and ventilation can be integrated when properly sealed.
• Aesthetic result: creates a smooth, crack-free and modern ceiling surface.
• Fast installation: in many cases, the system can be completed within a few days.

Disadvantages

The price of effectiveness is space requirement and the need for precise installation.

• Loss of ceiling height: typically around 8–15 cm.
• Low-frequency noise requires thicker and more expensive solutions: bass control needs mass and decoupling, which increases both thickness and cost.
• Error-sensitive system: even a single incorrect screw or perimeter contact can reduce overall performance.
• Penetrations, such as lights and loudspeakers, can weaken sound insulation if not properly treated.

When is it worth using hang ceiling for soundproofing solutions?

Is it suitable for flat owners?

Yes, if speech and television noise from above are the primary problems.

You have the best chance of success if:

• at least 8–12 cm of ceiling drop can be provided,
• full decoupling is implemented,
• perimeter joints are sealed with resilient tape and no sound bridges remain.

Expected outcome: improvements are usually more noticeable at higher frequencies, such as speech clarity. Low-frequency bass noise is always harder to control, so reductions in this range are typically more moderate.

Office environments – reducing sound transfer between rooms

In office environments, ceiling soundproofing can significantly reduce sound leakage between spaces. The best results are achieved when ceiling solutions are combined with:

• resilient sealing of wall junctions,
• careful treatment of penetrations such as lighting and ventilation openings,
• full decoupling of the supporting framework.

These details often determine whether a system performs as expected or falls short due to unintended sound bridges.

Studios and high-output hi-fi rooms – soundproofing by ceiling suspension

In studios and high-volume hi-fi rooms, expectations are considerably higher. In these cases, soundproofing by ceiling suspension alone is rarely sufficient, especially when the goal is to control bass energy and structural vibration.

Typically required elements include:

• increased mass using multiple layers or high-density sound-insulating boards,
• carefully selected resilient suspension systems designed for high loads,
• additional low-frequency solutions such as bass traps or room-within-a-room constructions.

At club-level sound pressure, this is no longer a DIY task. Acoustic measurement-based design is strongly recommended.

Soundproofing vs sound absorption – not the same problem

These two concepts are often confused, yet they address very different issues:

• Soundproofing means less noise passes through from neighbouring spaces
• Sound absorption means less echo and reverberation inside the room

A suspended ceiling designed for soundproofing focuses on stopping noise transmission. Acoustic panels or absorptive ceilings are intended to improve room acoustics and comfort, not to block neighbour noise.

Alternatives explained clearly

1) Fully decoupled suspended ceiling with resilient hangers

Choose this option if reducing neighbour noise is the main objective.

Pros:

• Reduced vibration transfer due to resilient suspension
• Typically achieves 12–25 dB airborne noise reduction depending on the system
• Allows concealed services when penetrations are properly sealed

Cons:

• Reduces ceiling height by 8–15 cm
• Requires precise installation to avoid sound bridges

2) Rigid suspended ceiling without decoupling

This option is mainly suitable for visual or architectural purposes.

Pros:

• Lower cost and faster installation
• Clean, smooth ceiling finish

Cons:

• Limited sound insulation due to rigid fixings
• Wall contact can further worsen performance

3) Acoustic drop ceiling using absorptive panels

An acoustic drop ceiling is ideal for reducing echo and improving speech clarity inside the room.

Pros:

• Improves acoustic comfort
• Can reduce reverberation time by up to 50 percent

Cons:

• Does not provide true sound insulation against neighbour noise
• Ineffective against bass without additional membrane solutions

4) Source-side intervention using a floating floor

Often the most effective solution against impact noise.

Pros:

• For impact noise, this approach often delivers better results than adding thickness or insulation to the ceiling from below, particularly when combined with a soundproofing mat or sound insulation underlay.
• It can provide a clearly noticeable reduction in impact noise

Cons:

• Not always feasible in apartment buildings
• Requires more extensive renovation work

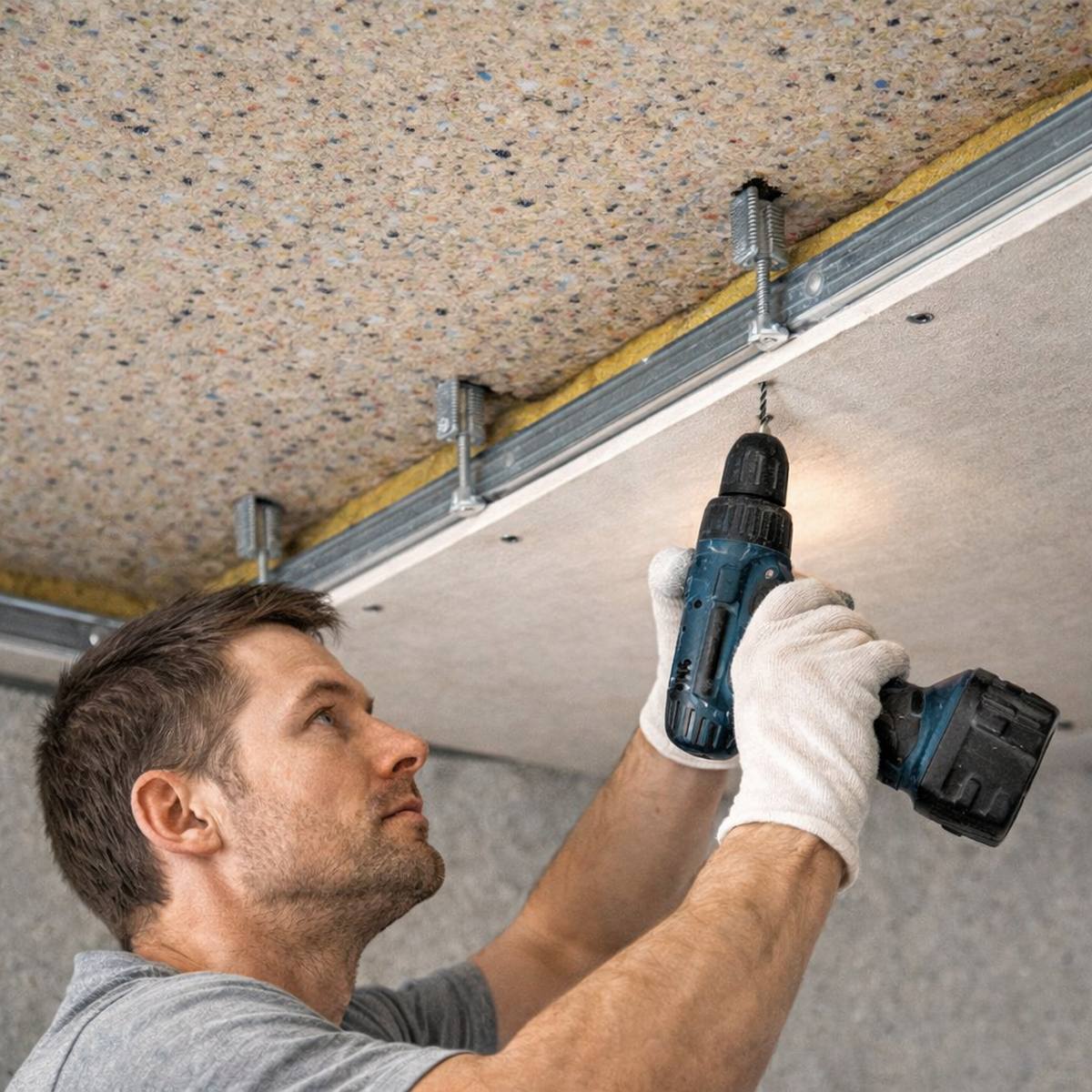

Mini case study – practical experience

In an 18 m² bedroom, speech and television noise from the upstairs neighbour were regularly audible, especially during the evening. The building was older, and small cracks at ceiling junctions allowed sound to pass through easily.

The following interventions were implemented:

• perimeter sealing using resilient tape,
• creation of a 10 cm air cavity with resilient hangers,
• installation of 5–10 cm extra-dense Elitexa soundproofing foam,
• closure with two offset plasterboard layers, fully sealed.

The result was immediately noticeable. Speech intelligibility dropped significantly, while low-frequency impact noise was reduced but not completely eliminated. This confirms that decoupling delivers major improvement, while bass remains the most challenging range.

Common installation mistakes and how to avoid them

• Rigid connections where screws or fixtures touch the slab
• Perimeter contact where the ceiling is pressed against walls
• Using soft mineral wool instead of extra-dense soundproofing foam
• Compressing insulation material, which reduces effectiveness
• Unsealed penetrations around lights, vents or cables
• Using only a single plasterboard layer instead of two offset layers

Step-by-step implementation with time estimates

1. Defining the goal: airborne noise, impact noise or both. Time: 30–60 minutes
2. Site assessment: ceiling drop, junctions and penetrations. Time: 1–2 hours
3. System selection: resilient hangers or vibration-controlled solutions. Time: 1 hour
4. Framework installation and full decoupling. Time: 0.5–1 day
5. Installing soundproofing foam without compression. Time: 1–2 hours
6. Ceiling lining with two offset plasterboard layers. Time: 0.5–1 day
7. Final sealing and inspection. Time: 2–4 hours

FAQ

Is mineral wool alone enough in a suspended ceiling for soundproofing?
No. Mineral wool mainly dampens the air cavity. Real performance comes from decoupling, sufficient lining mass and extra-dense soundproofing foam.

How much do resilient hangers matter in a decoupled suspended ceiling?
A lot. In practice, they can deliver over 15 dB better performance compared to rigid suspension.

What is the most common mistake when decoupling a ceiling for sound insulation?
Sound bridges. Even one rigid connection can significantly reduce effectiveness, so perimeters, penetrations and fixings must be handled carefully.

Can a glued ceiling solution be effective for soundproofing?
To a limited extent. Glued systems provide less sound insulation than suspended ceilings and should only be used for minor noise issues.

Does suspended ceiling soundproofing also reduce impact noise?
Partly. Impact noise is often better controlled at the source, for example with a floating floor and or acoustic mats combined with an Elitexa underlay.

Summary

Suspended ceiling soundproofing delivers real, measurable improvement only when the ceiling is flexibly decoupled and sufficient mass is added to the lining. Rigid, purely aesthetic ceiling systems rarely provide good value for sound insulation. Success depends on eliminating sound bridges, installing sound-insulating materials correctly and combining adequate mass with resilient suspension, always adapted to the specific conditions of the site.
