Timber Joist Ceiling Soundproofing: layers, tips and common mistakes in old buildings and studios

How can timber joist ceiling soundproofing be done during construction or retrofit?

Timber joist ceiling soundproofing works best when airborne noise and impact noise are treated separately. Speech and television sound can usually be reduced with mass and airtight layers. Footsteps and knocking sounds require elastic decoupling so vibrations do not travel directly through the structure.

This guide is intended for homeowners, studios and offices alike. Each situation involves a different balance between thickness, cost and achievable performance. The following sections explain how these trade-offs typically work in practice.

Explore our ceiling acoustic and soundproofing panels to find a solution that fits your timber joist ceiling, your available space and the level of noise reduction you need.

What should you know before starting timber joist ceiling soundproofing?

Even a relatively thin 2–4 cm additional soundproofing layer can noticeably improve comfort if the surface remains fully airtight.

With timber joist ceilings, two main noise types must always be considered:

• airborne sound such as speech or television
• impact sound such as footsteps or knocking

Low frequencies between 50–200 Hz are the most difficult to control. In many cases only a decoupled structure will significantly reduce them. Very thin adhesive solutions that rely purely on glued layers rarely provide sufficient performance.

In joist structures, edges and structural connections are critical points. Sound often travels sideways around the insulation instead of through it. In multi-layer systems, a combination of suspended ceiling, resilient layer and cavity filling can produce measurable improvements.

How timber joist ceiling soundproofing actually works

Sound insulation is essentially vibration management. The goal is to ensure that as little vibration energy as possible passes through the structure.

Controlling airborne sound

Air movement sets the ceiling into vibration. Effective protection relies on two key principles:

• increased surface mass, meaning heavier layers
• airtight construction by sealing gaps, cracks, sockets and lighting penetrations

Controlling impact sound

Walking or knocking causes direct structural vibration. For this reason the following factors are essential:

• resilient decoupling
• as few rigid connections as possible

The classic principle: mass spring mass

Two heavy layers are separated by a flexible damping layer. This structure prevents vibrations from transferring efficiently through the ceiling assembly.

You often do not need measuring equipment to identify the main problem:

• if speech is clearly understandable, airborne sound dominates
• if footsteps and knocking are the main irritation, footstep noise dominates

A resilient underlay placed beneath parquet flooring or carpet can already improve the situation. This targets the dominant noise source while avoiding the creation of new sound bridges.

If you want to understand how to soundproof a timber joist ceiling in more detail, it is worth reviewing a broader guide covering different ceiling soundproofing systems.

When is timber joist ceiling soundproofing particularly important?

The same solution does not work everywhere. In apartments, studios and offices the dominant noise sources differ, so the construction layers and installation methods may also vary.

In apartments, especially in older buildings

A typical situation in many historic properties includes high ceilings, large cavities between joists and speech easily passing through the structure.

Key considerations:

• a decoupled suspended ceiling installed from below can provide a good cost-to-performance ratio
• filling the cavity between joists may reduce resonance
• edges and structural connections must be carefully sealed

This approach is common in old building ceiling soundproofing projects where the original timber structure remains in place.

In studios where airborne isolation is critical

The typical problem is sound leaking into recordings or mid-low frequencies escaping during monitoring.

The basic requirements include:

• heavy soundproofing layers
• thicker decoupled structures for stable results
• careful treatment of wall to ceiling connections

In offices where a quick and aesthetic solution is required

Many people recognise this situation. Conversations carry between rooms and meeting noise travels through the space. Ceiling systems can provide a fast and visually clean solution.

Possible options include:

• thinner ceiling layers that improve comfort, for example a soundproofing board combined with a Bilnora felt absorption panel
• fast installation with minimal demolition so even maintenance staff can complete the work

Advantages and limitations of timber joist ceiling soundproofing solutions

Timber joist ceiling soundproofing can be implemented in several ways, from thin ceiling layers to fully decoupled suspended systems. The chosen structure determines both the achievable improvement and the compromises involved.

Advantages

Targeted noise reduction A properly designed structure allows separate treatment of airborne sound such as speech, television or music and impact sound caused by walking or knocking.

Flexible construction options The system can be built as a thin retrofitted ceiling layer or as a more complex decoupled structure. This flexibility allows the solution to match both the ceiling height and the available budget.

Retrofit without demolition is possible In certain cases wood ceiling sound insulation can be improved from below using a layered system built directly onto the existing ceiling. This is particularly practical during renovation or in occupied apartments.

Aesthetic appearance Decorative finishes or felt surfaces can be installed over the soundproofing layer. These provide both visual appeal and additional sound absorption.

Limitations

Thin layers have limited performance Thin systems mainly reduce mid and high frequencies. Deep structure-borne noise usually requires a decoupled structure.

Precision installation is essential If gaps remain around joints or penetrations, sound can easily bypass the insulation. Even a few millimetres of opening may significantly reduce effectiveness.

Flanking transmission Sound does not always travel directly through the ceiling. It can also pass through walls or joists. This may create the impression that the ceiling treatment is ineffective. In reality the system only works correctly if edges and connections are also treated and the soundproofing is viewed as a complete system.

Which solutions work with timber joist ceilings?

Timber joist ceiling soundproofing can be improved in several ways. The best option depends on whether airborne or impact noise is the main issue, how much space is available and how much structural intervention is possible.

1. Thin retrofit ceiling layer (Elitexa 20–40 mm + Bilnora 9 mm)

When is it suitable?

• when the goal is quick comfort improvement
• when speech or television noise is the main issue
• when ceiling height is limited
• when demolition should be avoided

When is it not ideal?

• when the main problem is footsteps or knocking
• when deep impact sound is present
• when a large improvement in sound insulation is expected

Why?

This layer structure mainly reduces mid and high frequencies. It is less effective against structure-borne noise because it is not a fully decoupled system.

Tip
Bilnora felt helps damp higher frequency sound ranges.

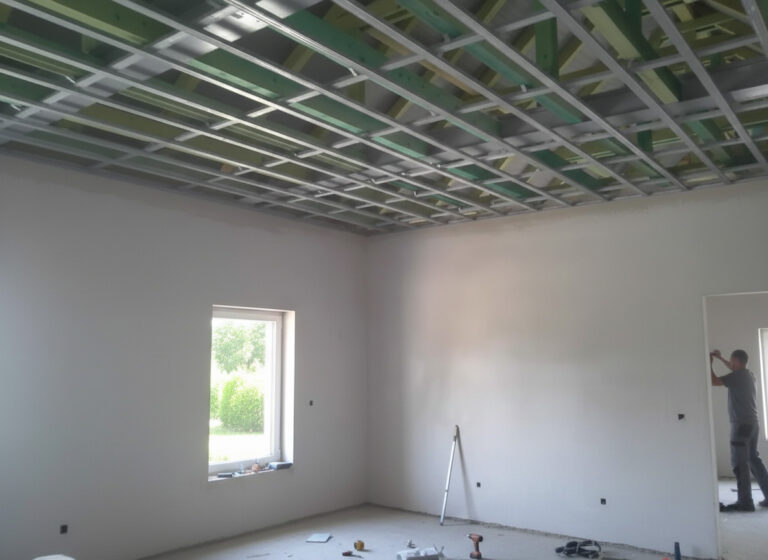

2. Decoupled suspended ceiling (resilient hangers with cavity filling)

When is it suitable?

• when both airborne and impact sound are disturbing
• when real improvement in sound insulation is required
• when the space functions as a studio or office

When is it not ideal?

• when ceiling height is very limited
• when a quick and simple solution is required
• when installation must be completed extremely quickly

Why?

A decoupled structure interrupts vibration paths and therefore also improves structure-borne noise performance. However it requires more space and careful installation.

Tip
If the cavity between joists is filled with dense material such as Elitexa acoustic foam, structural resonance can be reduced and the insulation becomes more stable.

3. Floating floor construction from above

When is it suitable?

• when footsteps and knocking are the main complaint
• when there is living space above
• when floor renovation is already planned

When is it not ideal?

• when speech transmission is the main problem
• when the floor covering should remain untouched
• when floor height differences create complications

Why?

Impact noise is reduced at the source, which can be very effective. However airborne noise usually requires additional measures.

Tip
Resilient floor underlay works properly only if the floor edges are not rigidly connected to the walls.

4. Filling the joist cavity with soundproofing material

When is it suitable?

• when renovation has already opened the structure
• when reducing cavity resonance is the goal
• when further soundproofing layers will later be added

When is it not ideal?

• when full sound insulation is expected from the filling alone
• when impact noise is the main complaint
• when the ceiling structure cannot be opened

Why?

Filling cavities reduces resonance and the hollow box effect typical of timber structures. On its own it rarely produces strong airborne sound insulation, so it is usually best used as part of a more complete wood ceiling sound insulation system.

Tip
Dense resilient filling materials such as Elitexa high density foam usually damp vibrations more effectively than light loose materials.

Browse our range of ceiling acoustic panels if you want a practical way to improve comfort and reduce noise without choosing a one size fits all system. If you are unsure which solution is right for your space, request a free* acoustic consultation and assessment and our team will be happy to help.

Which solution works best for different noise problems?

Typical scenarios include:

• In old buildings with large cavities: filling the cavity provides a good base, but significant improvement usually requires a decoupled structure.
• For dominant impact noise: floating floors above or decoupled suspended ceilings below.
• For airborne sound such as speech or television: airtight layers and proper layering are crucial, sometimes even with relatively thin ceiling systems.

Mini case study from an old timber joist ceiling

In a living room of an older apartment with exposed joist construction, residents began to notice that speech from the bedroom above was almost clearly understandable. Footsteps also produced sharp knocking sounds through the ceiling. They wanted a quick solution without major demolition.

After reviewing the available options they chose a simpler ceiling layer system. A 4 cm thick high density Elitexa acoustic foam was installed directly onto the ceiling, followed by a 9 mm Bilnora felt finish layer. During installation particular attention was given to sealing the edges and closing penetrations to avoid open sound paths.

The change was immediately noticeable. Speech became less intelligible and knocking sounds were softer. Deeper structure-borne noise could still be heard but at a much lower level. For the residents this was an acceptable compromise because comfort improved significantly without structural reconstruction.

Common mistakes that reduce the effectiveness of timber joist ceiling soundproofing

Sound insulation often fails not because of the materials but because of small installation details.

What happens if gaps remain at the connections?

Sound travels through air. If gaps remain between boards or joints, sound can easily bypass the insulation. Airtight installation and proper edge sealing are therefore essential.

Why is rigid fixing a problem?

Incorrect fixing can create a sound bridge. Vibrations then travel through the fastening points directly into the structure.

What happens if only one noise type is treated?

If airborne sound is addressed but transmitted impact noise is ignored, footsteps may remain disturbing. A good system considers the dominant noise source while still addressing the overall structure.

Why are empty cavities problematic in older buildings?

Large cavities can resonate and amplify the perception of sound. Filling the cavity helps reduce this hollow drum effect.

What happens if the layer structure is underestimated?

Thin solutions can improve comfort but usually cannot eliminate deep contact noise. Those sounds will often remain partially audible.

FAQ

Summary

Timber joist ceiling soundproofing works best when the solution is not expected from a single material but from the complete system. Airtight layers, correct structural mass and where necessary decoupled construction must all be considered together.

In older buildings special attention should be paid to edges and large cavities because these are often the main sound transmission paths. Thin systems can still improve comfort, but they are rarely the most reliable solution against impact noise.

The right decision always begins with identifying which type of noise is actually causing the problem.
